2.6.5.7 Run GSE Action
This block can be used to execute actions, which were created using the Graphical Script Editor. To create an action, see 2.4 Scripts.
This action allows you to program database access once and allow it be used by different user scripts
The action will be terminated
*if the given value (0) is received from the action, or
*if the return values (1-9) are received from the action, or
*if the call was disconnected during execution.

The parameters of the action are not passed, but must be set in the action.

Under "Properties", all three tabs "General", "Parameters" and "Connections" tabs are available for this block.

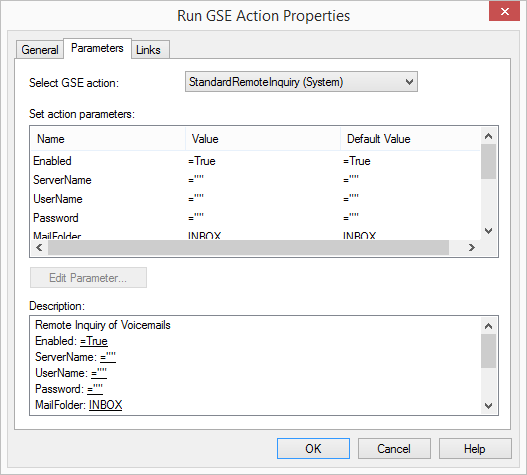

This is how you define the parameters for "Run GSE Action"
1 Select the GSE action to be executed from the field "Select GSE Action".
2 In the field "Set Action Parameters", you can edit the parameters found in the script. Highlight the corresponding parameter and click on "Edit Parameter...". In the "Set Parameter Value:" Window, you can then change the value. Save the changes by clicking on "OK". The "Set Parameter Value" window will be closed.
3 Click on "OK".
The "Run GSE Action" block can be seen on the grid interface and it available for further processing.

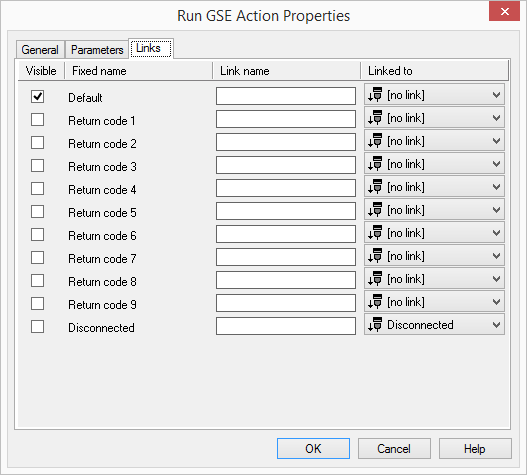

Links
On this tab you will find all outputs associated with this block. The outputs are described as follows:
Output
Explanation
Default
This exit is selected if the default value from the action is returned.
Return value 1 - 9
This exit is selected if one of the return values from the action is returned.
Disconnected
The call was disconnected during execution.
In the first column "Visible", you can define whether each output should be shown in the script window.

The "Visible" column is only used to define the visibility of the links in the script window. This setting helps to maintain the clarity of the script. You cannot remove outputs, i.e. the connections must be kept, otherwise an error will occur in the script.

The second column "Default" contains the default name of the output. This provides information about events during the execution of a block so that additional appropriate connections can be created. This fixed name cannot be changed. You can assign your own identifying names to the various contact surfaces in the column "Link name". This name will later appear in the block in the grid interface.
In the last column "Linked to" you see which block input this output is connected to. Here you have the option of selecting a link from a select list, which contains all available blocks.
