2.6.7.4 Delete Queue
The queue identified via the queue ID will be deleted. If there are still calls in the queue, these connections will be terminated.
This action will be terminated, if
*the selected queue was successfully deleted, or
*there is no queue with the corresponding ID, or
*the call has been terminated.
Under "Properties", all three tabs "General", "Parameters" and "Connections" tabs are available for this block.

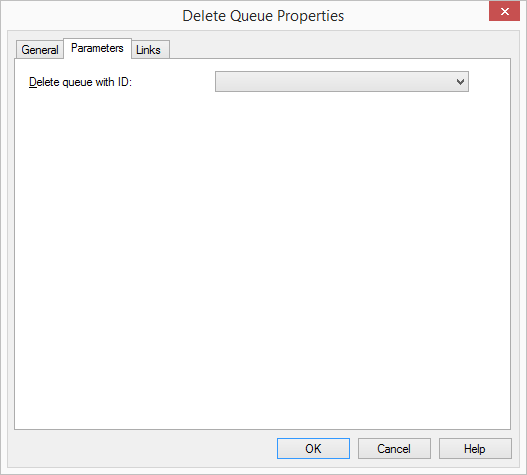

This is how you define the parameters for "Delete Queue"
1 Select the ID of the queue to be deleted from the drop-down list.
2 Click on "OK".
The "Delete Queue" block can be seen on the grid interface and it available for further processing.

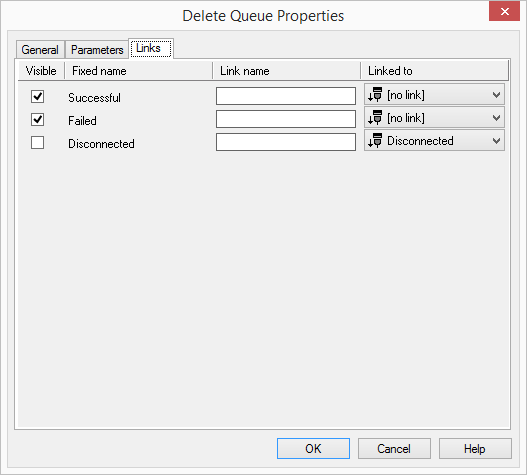

Links
On this tab you will find all outputs associated with this block. The outputs are described as follows:
Output
Explanation
Successful
This exit is chosen if the selected queue has been deleted.
Error
This exit is chosen if there is no queue with the corresponding ID.
Disconnected
This exit is selected if the call is disconnected.
In the first column "Visible", you can define whether each output should be shown in the script window.

The "Visible" column is only used to define the visibility of the links in the script window. This setting helps to maintain the clarity of the script. You cannot remove outputs, i.e. the connections must be kept, otherwise an error will occur in the script.

The second column "Default" contains the default name of the output. This provides information about events during the execution of a block so that additional appropriate connections can be created. This fixed name cannot be changed. You can assign your own identifying names to the various contact surfaces in the column "Link name". This name will later appear in the block in the grid interface.
In the last column "Linked to" you see which block input this output is connected to. Here you have the option of selecting a link from a select list, which contains all available blocks.
