1.6.3.2 Network

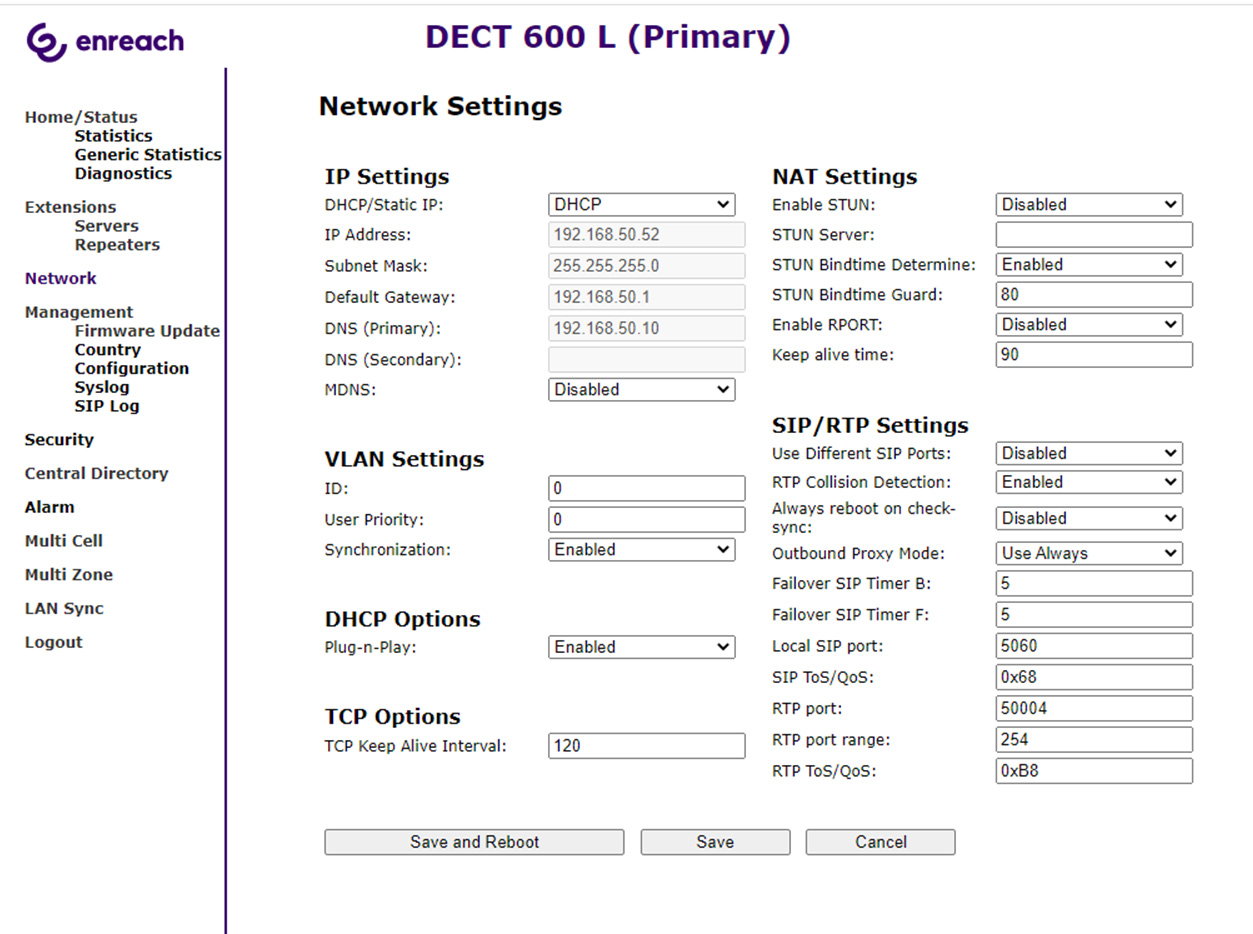

IP Settings
Function
Description
DHCP/Static IP
If the DHCP server is active, the base station obtains the TCP/IP parameters automatically.
IP Address
IP address of the base station
Subnet Mask
Subnet mask of the base station.
Default Gateway
IP address of the default network gateway
DNS (Primary)
Main server to which a base station directs DNS queries.
DNS (Secondary)
Alternate DNS server.
DHCP Options
At Plug-n-Play select Enabled.
NAT Settings
In the area NAT Settings you make various settings with regard to the use of a STUN server. A STUN server allows NAT clients to communicate behind a firewall with a VoIP provider outside the local network.
SIP/RTP Settings
Function
Description
Local SIP port
Port number default value: 5060
SIP ToS/QoS
Priority of call control signal traffic based on both IP layers of the ToS byte.
RTP port
The port to use for RTP audio streaming. Port number default value: 50004.
RTP port range
Number of ports that can be used for RTP audio streaming. Default value: 40
RTP ToS/QoS
Priority of RTP traffic based on IP layer ToS byte.
Last modified date: 09.08.2023
